DryMax Shaft Seals
The seal is a water-lubricated axial shaft seal system constructed of the highest quality materials which have been engineered to deliver long service life.
-
CATERGORIES [+]

DryMax Shaft Stern Seals,
engineered for optimum sealing performance.

The DryMax Stern Tube Seal System was designed, built and tested by Duramax Marine in the USA. The seal is a water-lubricated axial shaft seal system constructed of the highest quality materials which have been engineered to deliver long service life.
The DryMax Shaft Seal is a reliable system that uses no grease or oil and is easy to install and maintain. It is a great addition to a full line of proven and reliable marine products developed by Duramax Marine and engineered to protect the environment.

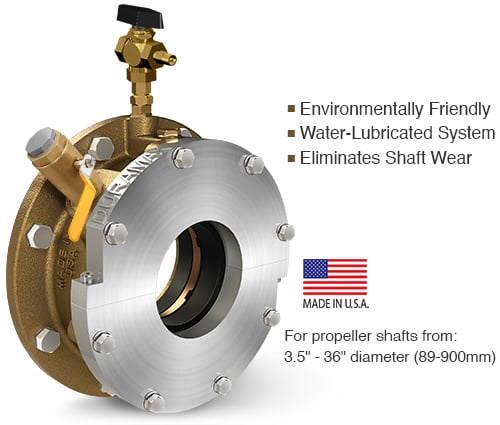

DryMax ShaftSeal
ABS1 LLOYDS VIET

Designed for heavy duty service in clean and dirty water.
The DryMax Seal has been engineered and tested for service in both Blue (clean) and Brown (gritted) water operating conditions. Our research and development team conducted experiments on our full scale test rig built to simulate the most difficult service conditions.

.

Simplicity of DryMax design.

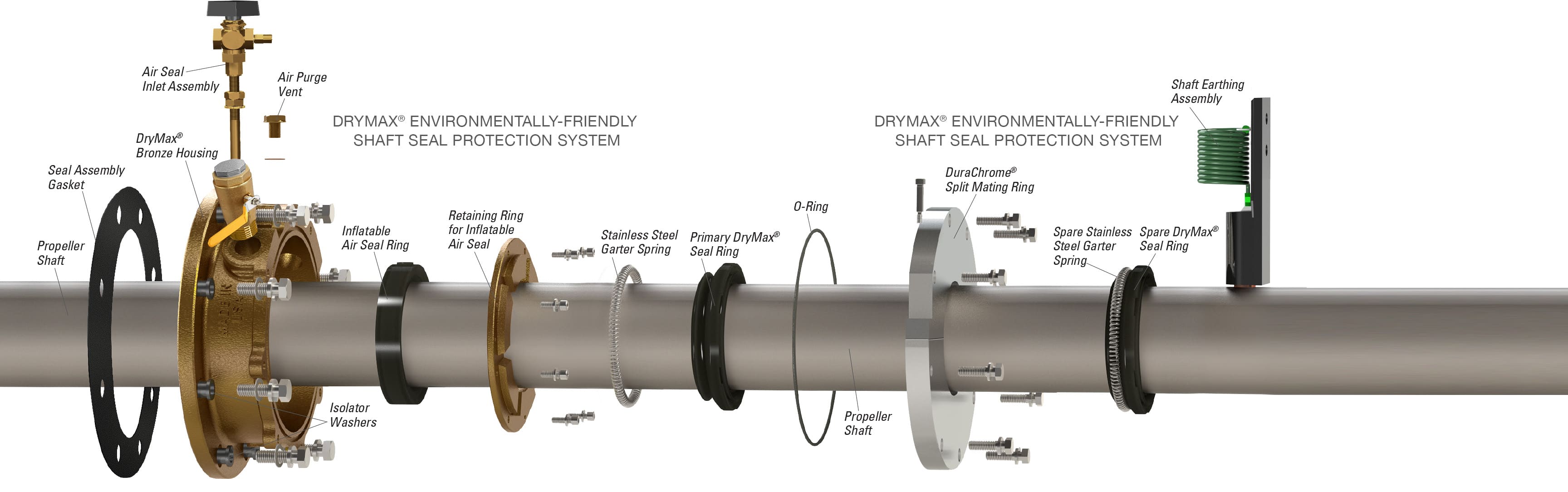

DryMax exploded view
leftviewright


The Duramax DryMax Shaft Sealing System can be installed in new construction or replace an existing shaft seal. In retrofit applications Duramax engineers can design an adapter plate that mates with the vessels existing stern tube flange to simplify installation.


Proprietary rubber Sealing Ring.

The DryMax Rubber Sealing Ring is very durable and is easily replaced if necessary. The ring is constructed of proprietary nitrile rubber that rotates with the propeller shaft and creates a hydrodynamic sealing interface with the highly polished DuraChrome Mating Ring. Every seal assembly includes an active rubber seal and a spare seal ready on the shaft for change out when needed. The DryMax Seal Ring is engineered to deliver a long operating life.


Maximum seal life with DuraChrome Mating Ring.

The DuraChrome Mating Ring can be reversed and reused with the spare rubber ring that is stored forward of the seal assembly on the shaft. Once both sides of the DuraChrome Mating Ring have been worn it can be restored by machining in a lathe. The Alloy used in the DuraChrome Mating Ring was engineered to optimize operation with our rubber seal ring.


Heavy duty cast bronze housing and components.

The housing and internal components of the DryMax Seal are made from a high grade cast bronze. The material was selected to resist corrosion and in many cases will last the lifetime of the vessel.

.

Easy maintenance of DryMax Seal System.

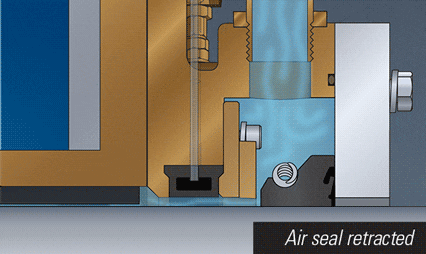

Self retracting inflatable air seal ring.

Duramax Marine was the first to introduce a patented air seal in the Johnson Heavy-Duty Stuffing Box. Our engineered Inflatable air seal is used as a safety feature on the DryMax Shaft Seal System. The air seal is held by a bronze retaining ring in the housing. It can be pressurized to make contact with the shaft, preventing any seawater from entering the vessel. It's a safety measure if leakage exceeds allowable levels. It can be pressurized to replace the rubber seal ring at sea without dry docking.
DryMax AirSeal

Engineered for easy seal ring change out.

The DryMax primary sealing components can be renewed easily with the vessel at sea. With seawater restricted by the inflatable seal the split DuraChrome Mating Ring can be removed and the old seal ring replaced with the spare seal. The split DuraChrome Mating Ring is reversible and switching to the unused side extends service intervals.

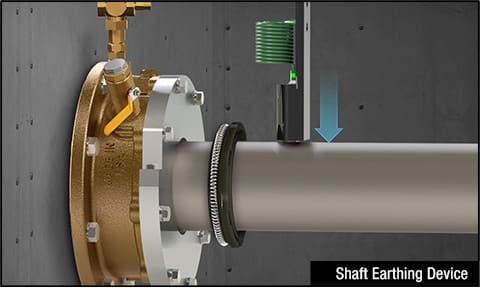

Shaft Earthing Device for corrosion control.
The Duramax DryMax Shaft Seal System includes an earthing assembly to help prevent shaft corrosion. The assembly contains a replaceable carbon brush that is spring loaded and grounded to the ship's hull.
DryMax Earthing device



.
pdf   DryMax Stern Tube Seal Brochure
pdfENG pdfESP pdfFR pdfPORT pdfVIET pdfTURK pdfSC
pdf   DryMax Stern Tube Seal Technical Brochure
pdfENG pdfESP pdfFR pdfPORT pdfVIET pdfTURK pdfSC
pdf   DryMax Stern Tube Quote Form
pdfENG
pdf   DryMax Stern Tube Service Request Form
pdfENG
Duramax® is a registered trademark of Duramax Marine® LLC.
DryMax® is a registered trademark of Duramax Marine® LLC.
DuraChrome® is a registered trademark of Duramax Marine® LLC.

.
drymax
.DRYMAX SEALING SYSTEM
  • Easy to use and install
  • Eliminates shaft wear
  • Environmentally friendly
  • Uses no grease, oil or costly lubricants
  • Maintenance free operation
  • Can replace any existing seal
  • Split reversible DuraChrome Mating Ring
    - Easy seal change out
    - Extends dry dock intervals
  • Inflatable air seal permits service at sea
  • Uses draft pressure to maintain seal
.
Our experts can assist you in converting your existing seal or stuffing box to fit our seal flange. Once installed, if at any time you need technical help to solve a problem just contact our technical support group
at +1 440-834-5400.
