DuraBlue Composite Water-Lubricated Stern Tube Bearings
Are manufactured using a unique synthetic reinforced composite that incorporates solid lubricants for superior operation.
-
CATERGORIES [+]

DuraBlue is a high performance stern tube bearing for blue water

operation.

DuraBlue water-lubricated stern tube bearings are manufactured using a unique synthetic reinforced composite that incorporates solid lubricants for superior operation and outstanding wear life in blue water applications.


The composite resin matrix was designed to withstand the rigors of seawater operation and frictional heat generated when used in stern tube propulsion systems.
DuraBlue is dimensionally stable, has a very low coefficient of expansion in extremely cold or tropical regions. DuraBlue is designed to tolerate edge loading and misalignment even with the heaviest loads. It is chemical and corrosion resistant and will not cause corrosion to housing.
.
ABS1 VIET

DuraBlue Bearing

Benefits of DuraBlue stern tube bearing.

  • Pollution Free

  • Approved for 2:1 L/d operation

  • Ultra low friction propulsion bearing - COF 0.001

  • High strength-to-weight ratio

  • Internal lubricants for superior operation

  • Proprietary fiber/resin matrix for extended wear life

  • Low coefficient of thermal expansion

  • Easy to machine and install

.
DuraBlue Bearing ABS with Ship

DuraBlue is an engineered composite material
with ABS type approval.



The DuraBlue composite matrix was engineered and tested to provide superior performance in blue water stern tube applications. It has received full ABS type approval for use in propulsion bearings with length to diameter ratios L/d as low as 2:1. DuraBlue bearings meet the requirements for operation in propulsion systems by all other class societies.

DuraBlue stands ahead of the competition.


Unlike unstable thermoplastic polyurethane elastomers, DuraBlue has an engineered composite matrix that will not suffer from hysteresis failure or swelling from hydrolysis. DuraBlue has a much lower coefficient of thermal expansion than polyurethane elastomers and will never loosen or become dislodged in the stern tube.

Duramax Marine maintains a commitment to the environment.


Duramax Marine offers the most complete range of seawater-lubricated propulsion system bearings in the industry. Our bearing systems are used on more commercial and navy vessels than any other brand.
.

DuraBlue is is a cost-effective stern tube bearing solution for blue water use.



DuraBlue Bearing is dimensionally stable and abrasion resistant.


Swelling in sea water is virtually eliminated with our proprietary composite resin matrix. DuraBlue thermoset polymer matrix is reinforced with synthetic fibers, and contain no organic fibers that can swell in sea water. It has an absorption rate ≤0.09%.

DuraBlue meets the Duramax Marine highest level of industry standards.


DuraBlue stern tube bearings have been tested in Duramax in-house lab and meet the highest level of marine industry standards. They are manufactured to meet ISO 9001 standards and are approved for commercial blue water marine use by ABS.

Duramax DuraBlue Compression Test


An independent laboratory static compression test on the DuraBlue composite material showed it exceeded 51,000 PSI.
testing


PROPERTY UNIT VALUE
Compressive Strength (ASTM D695)
MPa Psi > 207 > 35,000
Shear Strength (ASTM D2344)
MPa Psi > 13.8 > 2,000
Modulus of Elasticity (ASTM D638)
MPa Psi > 3,102 > 450,000
Hardness (ASTM D785)
Rockwell "R" > 110
Density (ASTM D792)
103 kg/m3 lb/in3 1.25 0.045
Water Absorption (ASTM D570)
% < 0.5
Coefficient of Thermal Expansion (ASTM D696)
10-6/°C 10-6/°F 43 24
Chemical Resistance
NA Good
Color
NA Blue
Maximum Temperature (ASTM D648)
°C °F 100 212
Minimum Temperature
°C °F < -200 < -328
Advised Maximum Working Temperature
°C °F 80 176
Coefficient of Friction - Steady State
Tested dry operation at 15N/mm2
0.1 – 0.2
Tested wet at 80 npsi
0.001 – 0.003
General Wear Resistance
NA Very Good
Resistance Against Abrasive Wear
NA Good
Deflection*
in < 0.010
* after 24 hour at 15 N/mm2

.
pic
DuraBlue Stern Tube Bearings
pic
DuraBlue Stern Tube Bearings

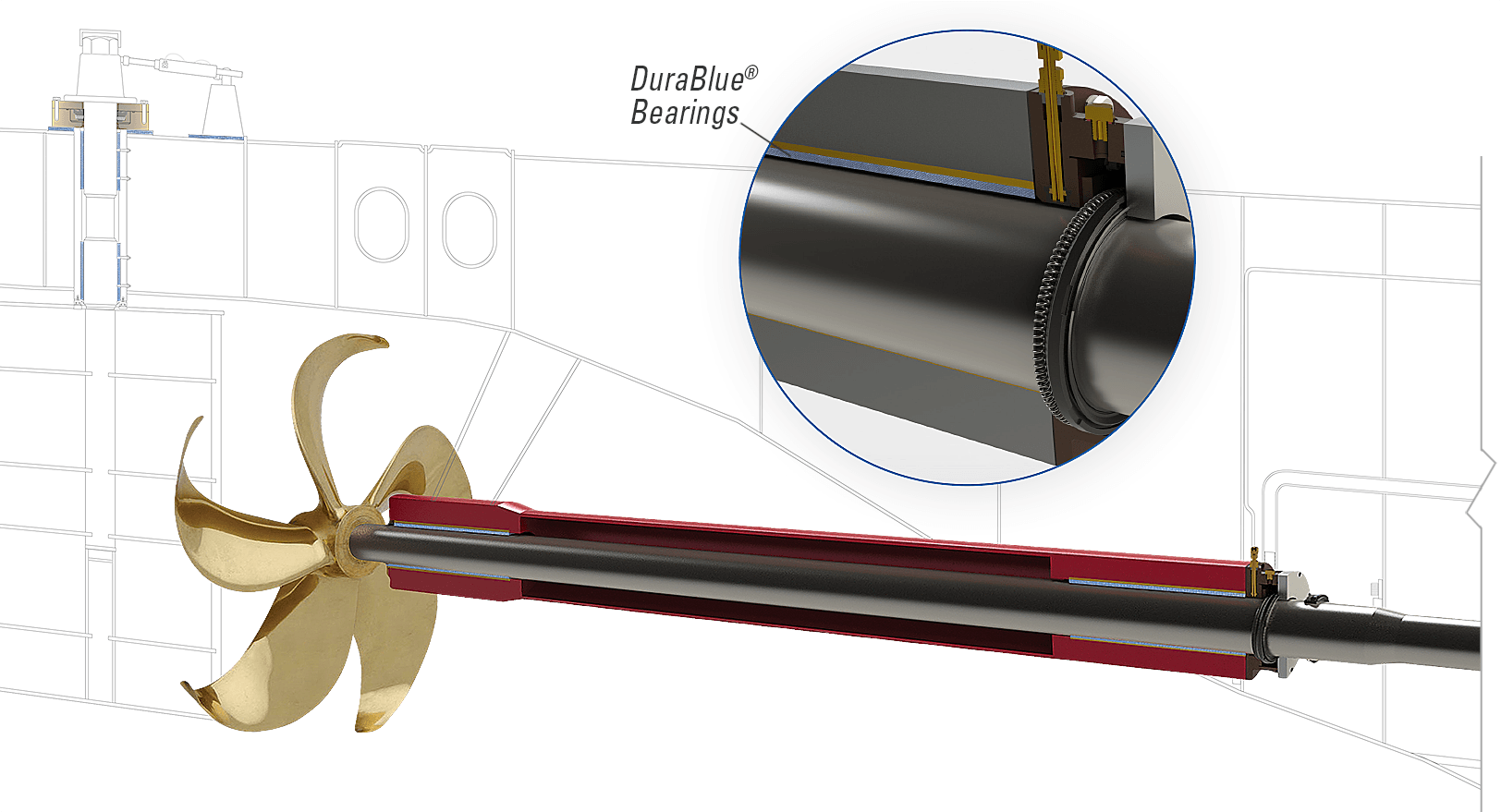

DuraBlue Bearing Application
Hover over image to view other Duramax products
.

DuraBlue is ideal for conversion of oil to water-lubricated propulsion systems.



Duramax Marine Engineers can design a complete conversion of your oil lubricated propulsion system to a water-lubricated system.

Seawater lubrication - The ideal lubricant.


Seawater is the ideal lubricant for use in modern propulsion systems. It offers the obvious advantages of being nonpolluting and environmentally friendly. It is plentiful and a cost effective and superior alternative to oil lubricated propulsion systems. Our engineering team can design a water-lubricated propulsion system that eliminates oil pollution and keeps our oceans clean.

Ultra low friction and wear.


Wear and friction are more important considerations with water-lubricated bearings than with oil lubricated bearings. This is because of the very low viscosity of water and the resulting thin film thickness. DuraBlue is designed to operate hydrodynamically and support water film development at very low shaft speeds. The material matrix is also extremely resistant to wear by third body abrasion.

Special designs.


Special bearings for naval application that incorporate partial arc segmental bearings mounted in split bronze housings are also available. All bearings can be manufactured as full or split bearings.

DuraBlue Stave Bearings

Stave Bearing design.


Staves can be machined using sheet stock and is an easy and more economical solution when removing worn staves and keeper strips for replacing staves in the bronze carrier.
.

DuraBlue Bearings, custom fit to match your application.



DuraBlue Bearings can be easily machined.


machinable bearing
As a general guide DuraBlue Bearing is machinable using standard conventional machine shop techniques. Methods used for brass, aluminum or lignum vitae will apply for DuraBlue. It is preferable to use tungsten carbide turning tools with cutting speeds of 5.5 m/s (19ft/s). Must be machined dry, without use of coolant.

DuraBlue Bearings are available in any size.


DuraBlue Bearings are available for any shaft diameter. The bearings can be supplied from our factory in unfinished tubes or we can supply fully machined ready for service.

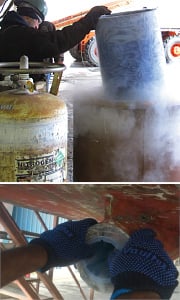

Fitting methods for DuraBlue Bearings.


freeze fit application
DuraBlue can be easily installed using one of these recommended installation techniques:
  • Press Fit
  • Freeze Fit
  • Liquid Nitrogen (Vapor Method)
  • Liquid Nitrogen (Immersion Method)
  • Dry Ice and Alcohol Method
DuraBlue Sizing Calculator
.
pdf   DuraBlue Composite Water-Lubricated Stern Tube Bearings
pdfENG pdfESP pdfFR pdfPORT pdfTURK pdfVIET

DuraBlue® is a registered trademark of Duramax Marine® LLC.

durablue
DuraBlue Bearings are available in any size.
DuraBlue Sizes

. Duramax products complete your water-lubricated propulsion and steering systems.

DuraBlue Sizes
DuraBlue is also designed to be used as a rudder bushing, thrust washer and wear pad.

DuraBlue Sizes
Duramax Marine also manufactures DryMax Shaft Seal. It is a robust, long-life shaft seal designed for optimal sealing performance.

DuraBlue Sizes
DryMax Rudder Sealing System also available.

.
